Platform Power Pallet Trucks 2.0 - 2.5 Ton

2.0 - 2.5 ton Capacity Platform Power Pallet Trucks

The NPV20-25N3 and NPF20-25N3(R)(S) series of power pallet trucks offer exceptional productivity and comfort, with significant engineering and design advances ensuring fast and confident operation in virtually any condition.

Home >
Products >
NPV20-25N3 & NPF20-25N3(R)(S)

features

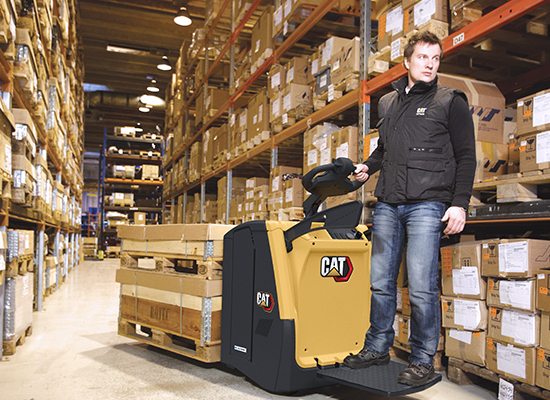

Productivity

Increase Productivity - These trucks are programmable to suit operators of all skill levels, helping to optimize your operations.

Work in Tight Spaces - Compact chassis and easy steering provides excellent maneuverability that make it easy for operators to get around the warehouse quickly and efficiently.

Unique Floating Drive Unit Design - Works with additional friction force from the hydraulic system to maximize drive wheel pressure and traction, so wheelspin on slippery floors is prevented and braking performance is optimized.

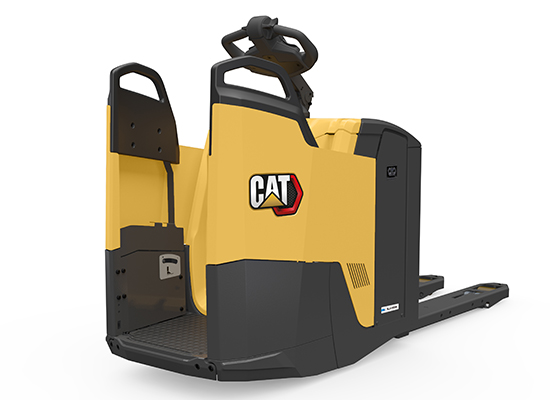

Ergonomics

Large, Spacious Operator Platforms - Provide hours of comfortable operation, whether on a fold-down platform or a fixed platform.

Comfortable Operation - With many different types of steering designs such as tiller-type power steering, comfort steering via a tiller head without arm, mechanical steering and electronic steering technology, operators are sure to be provided with a sustainable design for comfort shift after shift.

Keeping Operators Fresh - Ergonomically designed, easy to reach controls make this truck comfortable to operate and also help to provide increased throughput.

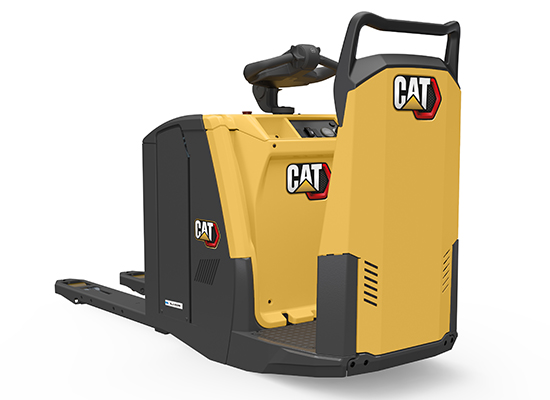

Operational Flexibility

Versatile Design – Use the NPV20N3-NPV25N3 either as a pedestrian style pallet truck or flip the operator platform down to switch to ride-on mode for longer shuttle runs.

Rear Entry Fixed Platform – The NPF20-NPF25N3R has a fixed platform with rear entry, which is ideal for loading and unloading operations.

Side Entry Fixed Platform - The NPF20-NPF25N3S makes it ideal for low-level order picking and other internal applications requiring operators to quickly enter and exit the truck.

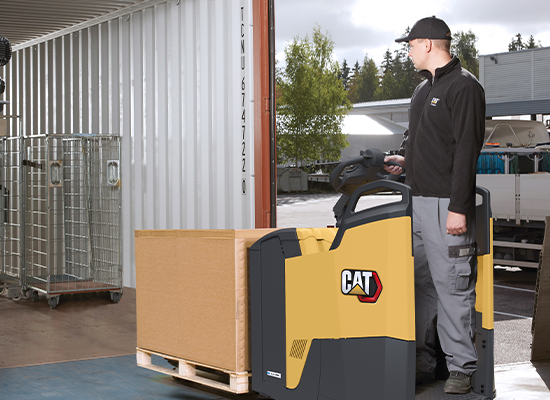

Intuitive

Cornering Control - Automatically slows truck down when turning in order to maintain smooth travel. With the caster wheel design, even on rough surfaces, shocks and vibrations are minimized. These trucks feature a locking function that maintains load stability during turns to further increase operator confidence.

Electronic Steering Technology - Automatically adjusts sensitivity according to steered angle and truck speed, and gives resistance and feedback, for controlled travel.

Control Switches - Proportional lift and lower control via rocker switches enables quick, smooth and accurate load control for an intuitive feel and operation.
Total Cost of Ownership

Shorter Maintenance Time - Sealed connectors and sensors, quick and easy access to major components and clear truck status communication from the display help to keep your products moving longer.

Fully Weather Protected and Impact-Resistant Tiller Heads - sealed to IP65 standards and reinforced for high durability.

Durable Design - Constructed with high quality components, these trucks are built to keep your products moving by providing greater run times while minimizing down time.
Questions?
Find Your Dealer Now.

We have the largest dealer network in the business, ready to serve you where you need us.
Find A Dealer

specifications

Model	Model Capacity (kg)	Voltage (V)	Length (mm)	Width (mm)	Height (mm) ¹	Weight (kg) ¹
NPP20N2R	2,000	24	711	720	135	595
NPV20N2	2,000	24	711	720	135	660
NPP18N2R	1,800	24	1,864	540	135	595

¹ Where applicable, does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.
