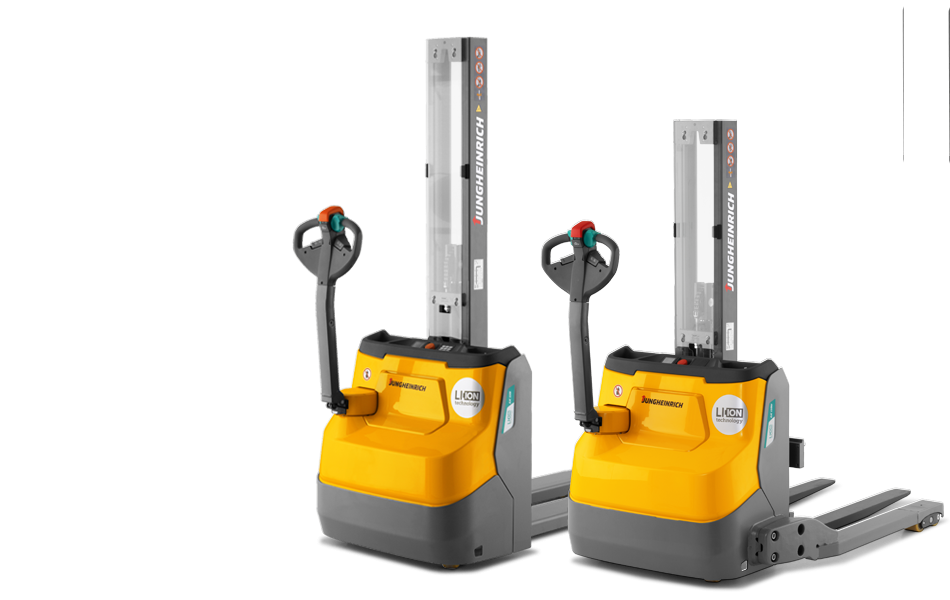

EJC110i/EJC110bi | Jungheinrich

2,200 Lb. Capacity Electric Walkie Stacker

The EJC110i/EJC110bi electric walkie combines productivity, efficiency and operator security in one user-friendly design.

Home >
Products >
EJC110i/EJC110bi

features
Productivity
Straddle stackers feature fast lifting speed for improved productivity.

Compact and maneuverable straddle stacker simplifies operation within narrow aisles.

Designed for precise and gentle depositing of fragile loads onto racking or the floor. The stacker's lowering speed is electro-hydraulically controlled in 2 stages and can be controlled through a button on the handle head (optional).

Awareness
Offset drive unit creates higher four-point wheel stability.

Large, red emergency cut-off switch enables quick, intuitive shut down of forklift in case of emergency.

Energy Efficiency
The walkie stacker battery, when combined with energy-efficient 3-phase AC technology, provides long operating times.

Standard Maintenance-free 24V / 50 Ah Lithium-ion battery

Integrated 115V charger and cord for fast, simple charging at any 110 / 120V wall outlet.

Ergonomics

Ergonomic, multi-function tiller head.

Unique, single cylinder mast design for a superior view of the load.

The walkie stacker is easily maneuvered with the handle in the vertical position by pressing the crawl-speed button.

Lift and lower controls combined on a rocker switch for convenient operation in any handle position.

Slim profile mono mast design for a superior view of the load.

Total Cost Of Ownership
Low maintenance 3-phase AC drive motor.

Integrated charger sealed within IP54-protected controller.

Tiller head and electrical connectors pro¬tected to IP65.

Easy access to all forklift components through the durable front cover.

Contact Our Specialists Today

Let us help you find the right solution to optimize your warehouse productivity.

Request More Information

Questions? Find Your Dealer.

Over 340+ locations in North America – ready to serve you where you need us.
Find A Dealer

specifications

Model	Basic Capacity (lbs)	Maximum Fork Height ²	Voltage (or Fuel Type)	Length To Fork Face	Chassis Width (in)	Chassis Height (in) ¹	Gross Weight (lbs) ¹
EJC110i	2,200	60.6	24V	67.5	31.5	77.6	1,056
EJC110bi	2,200	59.4	24V	67.5	31.5	77.6	1,133

¹ Where applicable, does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.

resources
- Product Spec Sheet - English

  EJC110i/EJC110bi Medium-Duty Walkie Stacker

  Download
- Product Spec Sheet - Spanish

  EJC110i/EJC110bi Medium-Duty Walkie Stacker

  Download
